Budget Solar PV Installation Schematic Labels - Design 2. 150mm x 75mm. Choice of Colours

Our Budget Solar PV Installation Schematic Labels are a practical, cost-effective way to provide a clear visual guide to your solar photovoltaic installation. Measuring 150mm x 75mm, these single-colour labels are available in Black, Blue, Green, or Red and are printed on tough, strong-adhesive material for reliable, long-term use.

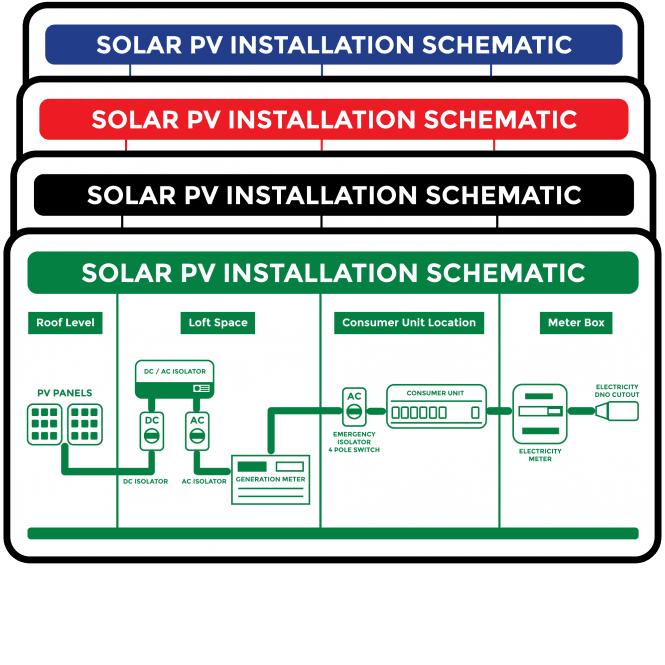

Each label displays a clear schematic diagram showing the layout of a typical solar PV system, highlighting important components such as AC isolators, DC isolators, inverters, and connection points. With three different schematic designs available, you can choose the diagram that best matches your installation type.

Designed for use on any solar PV system, these labels make it easy for installers, inspectors, and maintenance personnel to understand the system’s layout at a glance. They are suitable for both residential and commercial solar installations.

For best adhesion and durability, apply the labels only to clean, smooth, and flat surfaces.

Key Features:

Size: 150mm x 75mm for clear visibility.

Available in single colour: Black, Blue, Green, or Red.

Printed on durable, high-tack adhesive material.

Choice of three schematic designs for common PV configurations.

Components clearly marked, including AC/DC isolators and inverter.

Ideal for residential and commercial solar PV systems.

Easy to apply to clean, flat surfaces.
